Bordo’s diamond mist drill system is ideally suited to cutting ceramics, porcelain tiles and stone.

Mist Drill features:

• They produce no-crack, burr-free holes with minimum spalling • The interchangeable cutters result in a lower cost per hole than some other diamond drill solutions • Rotary only action ensures low noise and vibration • Modular system - only buy the components you need • Automatic water feed for efficient cooling

Range:

• Replaceable cutters 5.0, 6.0, 6.5, 8.0, 10.0 and 12.0mm

• 5 sets featuring different sizes and combinations

HSS

TUN

TWI CERAMIC TILE DRILLS MULTI-FACET TCT GLASS AND TILE DRILLS TCT – SPEAR POINT

Bordo’s range of Brilliant diamond hole saws are manufactured using vacuum brazing to “adhere” the diamond material to the saw.

Brilliant Diamond Saws feature:

• Vacuum brazing provides the strongest bond between the diamond particles and the holesaw • Superior performance and greater saw life than traditional electroplated diamond saws

• Slotted edge allows water to enter the cut, extending saw life • M14 thread compatible with most popular angle grinders • Hex shank adaptor available which allows saw to be used in pistol drills • Ideally suited to cutting ceramics, tiles, porcelain and stone

Range:

• Individual saws from 10mm to 115mm

Extreme Performance

Multi-facet Tungsten Carbide Tip

These Rotary Only ceramic tile drills provide outstanding performance and extended tool life in hard ceramic materials. They feature a unique cutting edge geometry in conjunction with high temperature brazing to ensure reliable and accurate drilling in multiple hole applications. Use of water cooling will extend bit life. • Although these drill bits are not recommended for drilling vitrified porcelain, their superior multi-facet tungsten carbide tip enables them to drill most materials of this type, albeit with a reduced tool life

Range:

• 8 sizes from 3.0mm to 10.0mm • Set contain 5 drills

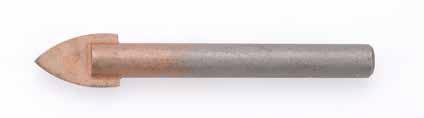

Tungsten Carbide Spear Point Drills

These drills are designed for drilling glass, tile and other hard, brittle materials. The tungsten carbide spear point is extremely hard and features uniquely sharpened edges for fast penetration with reduced end thrust. These drill bits cut clean round holes without chipping or material breakage. Work best with a lubricant such as water to extend bit life.

When drilling multiple holes in ceramic tiles, or when drilling vitrified porcelain, we recommend using either Bordo ceramic tile drills or the Bordo mist drill product range.

Range:

• 7 sizes from 1/8" to 1/2"

Ceramic Tile Drills are also suitable for use in brick, concrete and other masonry materials. Ensure the drill is in rotary only - DO NOT use hammer action.
