Timber Framing

• Powder actuated -10 Shot strip loads • Semi automatic • Power adjustable • 85mm pin capacity • Extremely robust design • 300J maximum impact energy

Part No.TS750P

FAST FIXING!

Timber & Steel Formwork

• Powder actuated -10 shot strip loads • Semi automatic • Power adjustable • 100mm pin capacity • Powerful

• 400J maximum impact energy

Part No.FORMMASTER

FrameBoss ™ Tool Kit Contents

• Steel Tool Case • FrameBoss ™ Tool • Lubricating Oil • Safety Glasses • Cleaning Brushes • Ear Plugs

• Single Shot Fastener Guide • Spall Guard • Cleaning Cloth • Replacement Buffer

FrameBoss ™ 75

Specifcation

Part No. FrameBoss Weight 3.0 kg (3.2 kg with mag.) Impact Force 380J Fixing Capacity: Timber to Concrete 50mm Timber to steel 50mm metal to Concrete 3mm metal to steel 3mm Pin Capacity (single shot)

up to 75mm

Pin Capacity (magazine)

up to 60mm

overall Length 490mm

substrates Concrete, Steel, Masonary

FrameBoss75 3.7 kg (3.99 kg with mag.) 380J

75mm 50mm 3mm 3mm up to 100mm

up to 75mm

525mm

Concrete, Steel, Masonary

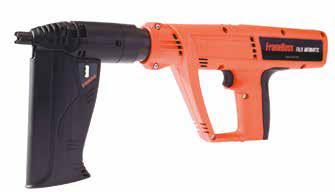

The Ramset ™ FrameBoss TM is a fully automatic powder actuated tool, which is capable of fxing 10 pins without the need to reload or cycle the tool. The automatic piston return system and 10 pin magazine allow for faster fxing rates with less effort. The magazine can be adjusted to lock into a number of positions to allow the tool to be used in confned spaces. The FrameBoss TM tool is also supplied with a single shot fastener guide to allow the tool to be used with longer fasteners and assembles such as brackets and clips. With a huge 380 Joules of impact energy coupled with power adjustment, the tool can be used in a wide variety of applications e.g. Timber framing, formwork and the fxing of steel track. FrameBoss TM is designed to save you time and money.

Features & Benefts

• Automatic piston return • No manual cycling required • Easy to maintain on site

• 10 Pin magazine and single shot fastener guide • 75mm single shot capacity, 100mm with FRAMEBOSS75 • 60mm magazine capacity, 75mm with FRAMEBOSS • 380J maximum impact energy • Power adjustment • Trigger lock • Hand guard • Cushioned rubber grip
