METRICAL SOLID CARBIDE TTER

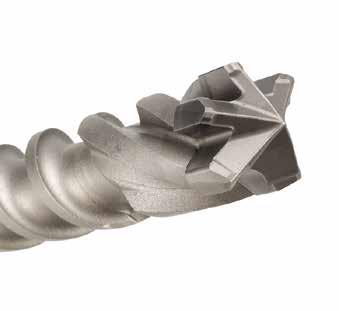

Standard Deltagon bits feature a solid triple flute carbide head. Bits over 20mm feature asymetrical solid 5 cutter carbide head for proved cutting efficiency, reduced vibration d superior performance in mesh and bar.

DRILLING SOLUTIONS FOR MASONRY

or hole concentricity results in increased anchor performance

Conventional Masonry Bit Triangular Hole

Deltagon SDS-Plus Masonry Bit Round Hole

Bordo’s range of Deltagon SDS Plus and SDS Max masonry drill bits offer outstanding performance in a wide variety of drilling applications. Deltagon bits offer specific advantages over standard SDS bits:

• High durability and improved drilling speed.

• Solid, single piece tungsten carbide head is permanently bonded to shank – not brazed. This results in extended bit life by eliminating bit failure due to excessive heat melting brazing material. • Eliminates rifling – drilling holes close to perfect roundness.

• Extremely round holes result in improved fastener performance by increasing pull out loads. • More accurate hole starting without bit walk. • Limited circumferential wear.

• Drills through reinforcing mesh and reinforcing bar.

• Minimised bit binding against reinforcing bar – increasing operator safety. • Easily drills through all typical steel decking plate including Bondek®. • Reduced vibration minimising operator fatigue. • Extremely hard wearing for long tool life. • Triple thread shank for improved dust extraction.

• The Delta Shank, on a limited range of small size Deltagon drills (6mm and smaller), has a triangular cross section and provides exceptional resistanceto bending. The Delta Shank provides efficient dust extraction without the need for conventional flutes.

• Triple flute solid carbide head on diameters 20mm and less reduces vibration.

• Asymetrical five cutter head on sizes over 20mm in the SDS Plus range anda select range of sizes in SDS Max.

Range

• SDS-Plus 4.0mm up to 26.0mm in a range of overall lengths from 116mm up to 470mm • SDS Max 10.0mm up to 26.0mm in a range of overall lengths from 305mm up to 540mm

Sets

• Part # 2543-S1 SDS-Plus 5.0, 5.5, 6.5, 8.0 & 10.0mm OAL 166mm • Part # 2543-S2 SDS-Plus 5.5, 6.5, 8.0, 10.0 & 12.0mm OAL 166mm • Part # 2543-S3 SDS-Plus 5.5, 6.5 & 8.0mm OAL 166mm

Bordo® is a registered trademark of Bordo International Pty Ltd. Bondek® is a registered trademark of BlueScope Steel Limited. Deltagon® is a registered trademark of Kabushiki Kaisha Miyanaga.
