EASY-FORM EXPANSION JOINT VARIOUS

SOF-FORM PLAIN EXPANSION JOINT VARIOUS

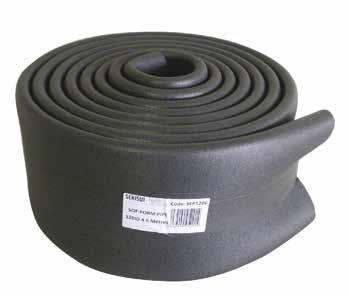

SOF-FORM PIPE SFP1146, SFP1206

Performance Data

Property Typical Value Test Method

Density 25 kg/m 3 (nominal) Internal

Tensile Strength 3.3 kg/cm 2 MD, 1.8kg/cm2 CD JIS K6767

Elongation 240% MD, 140% CD JIS K6767

Tear Strength 2.0 kg/cm MD, 1.3 kg/cm CD JIS K6767

Hot Sealant Penetration

Zero RTA T1154

Compression Strength

0.85 kg/cm 2 @ 50% defection Internal

Extrusion During Compression

1.3 mm RTA T1150/ASTM D545

Recovery After Compression

100% after 10 minutes RTA T1151/ASTM D545

Water Absorption 0.09 mg/cm 2 JIS K6767

Water Vapour Permeability

8.2 x 10-14 kg/m/s/Pa JIS Z0208

Variety of sizes: Available in 25m rolls in 10mm thickness, the stock roll widths of; 50mm, 75mm, 100mm, 125mm, 150mm, 200mm, 250mm & 300mm.

Physical Properties

Property Value Test Method Units Typical

Density Internal kg/m³ 25 (nominal)

Tensile Strength JIS K6767 kg/cm²

MD 3.3 CD 1.8

Elongation JIS K6767 %

MD 240 CD 140

Tear Strength JIS K6767 kg/cm

MD 2.0 CD 1.3

Compression Strength Internal kg/cm

25% 0.30 50% 0.85

Hot Sealant Penetration RTA T1154 zero

Extrusion During Compression

RTA 1150/ASTM D545

mm 1.3

Recovery After Compression

RTA 1151/ASTM D545

% 100% after 10 min.

Water Absorption JIS K6767 mg/cm² 0.09

Water Vapour Permeability JIS Z0208 g/m², 24h 4.5

Physical Properties

Property Value Test Method Units Typical

Density Internal kg/m³ 20 (nominal)

Tensile Strength JIS K6767 kg/cm²

MD 1.9 CD 1.3

Elongation JIS K6767 %

MD 80 CD 108

Tear Strength JIS K6767 kg/cm

MD 0.9 CD 1.1

Compression Strength Internal kg/cm 25% 0.26

Compression Set JIS K6767 % set 25% Def.n 9.5

Dimensional Heat Change 70°C, 22HR %

MD -1.50 CD -0.90

Water Absorption JIS K6767 mg/cm² 0.09

Water Vapour Permeability JIS Z0208 g/m², 24h 4.5

Thermal Conductivity ASTM 177 W/mK 0.034

Stock lines:

• 114id x 10mm wall x 6m

Available in lengths from 2m to 100m and in other ID’s on request

Variety of sizes: Available in 25m rolls in 10mm thickness, the stock roll widths of; 50mm, 75mm, 100mm, 125mm, 150mm, 200mm, 250mm & 300mm.
