McIntyre manufacture an extensive range of Timber Connectors, Post Supports, Metal Door Frames, Wall & Roof Bracing, Insulation Foil & Wrap, Letterboxes, Brickties and Masonry products. Full range is available upon request.

• Star pickets are available in bl galvanised for superior perform heavy duty rural situations • Posts are made from heavy duty traditional steel grades allowing fexibility and forgiven when put under pressure

• Post size range is from 135mm up to 240mm

SAFER - The Frook reduces the risk of injury by eliminating some of the more dangerous situations that arise during the erection of roof trusses. The unique design of the Frook and its ease of use allows for spacing corrections after roof trusses are in place.

FASTER - The Frook is simple to use. Once the frst roof truss is secured you attach the starter clamps to the top and bottom chords at intervals as per Australian Standards AS4440-2004 ie. maximum 3 metres on top chord and 4 metres on bottom chord. The Frooks for the next roof truss are then hooked through the eyelet of the frst Frook and clamped onto the next roof truss when it is in position. The Frook allows for hand adjustment whilst the roof truss is in position by the use of the secondary adjustment mechanism. You then simply repeat the procedure with the following roof trusses, attaching the Frook to

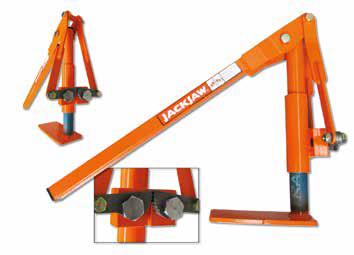

Jack Jaw is a unique star picket puller that enables you to pull star picket out of the ground with ease. Product has a Jaw clamping action that grips the star picket, locking onto it when you apply force to pull the picket from the ground.

the previously braced roof truss to create a continuous line of secured Frooks and roof trusses.

MORE COST EFFECTIVE - Additionally there are signifcant cost savings to be gained by using the Frook because of the substantial reduction of crane time on the job and the elimination of temporary bracing materials and associated preparation works.

When the framework is in place and secure, you simply remove the Frooks and take them to the next job.

The Frook comes in two standard sizes, 600mm and 900mm. The built in adjustment mechanisms and combination use will cater for any spacing from 330mm to 950mm.
