Page 117 - CSS FAT PIG_LR

Features and Benefts: • Single-Rope Pull and Release • Strong Roll-locked D-Rungs • Stabiliser Ready

• Fibreglass ladders also available with factory ftted Pole Mount

• Ladder Bumpers (LB-01) also available to protect walls

Material: Aluminium Rating: 150kg Industrial

Product Code Height Weight

EL8/13-I 2.4-3.9m (8-13ft) 11kg EL10/17-I 3.1-5.3m (10-17ft) 13.4kg EL12/21-I 3.7-6.5m (12-21ft) 15.8kg

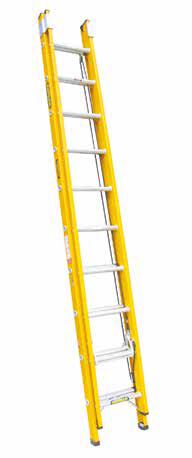

Material: Fibreglass Rating: 130kg Industrial

Product Code Height Weight

FEL10/17-I 3.1-5.3m (10-17ft) 20.1kg FEL12/21-I 3.7-6.5m (12-21ft) 23.4kg FELP10/17-I 10-17ft (3.1-5.3m) 21.6kg FELP12/21-I 12-21ft (3.7-6.5m) 24.9kg

POLEM-01 AS-300 AS-400

Features and Benefts:

• Multi-purpose ladder (4 confgurations): A-frame, Extension, Uneven A-frame (stairway), Trestle • Factory ftted wheels

Material: Aluminium Rating: 120kg Industrial

Product Code Height Weight

MM15-I

A-frame: 1.2-2.1m Extension: 2.7-4.5m

19.5kg

Features and Benefts: • Strong Roll-Locked D-Rungs • Non-slip, Non-marking feet • Optional hooks for use with scaffold

• Ladder Bumpers (LB-01) also available to protect walls

Material: Aluminium Rating: 140kg Industrial

Product Code Height Weight

SBL008-I 2.4m (8ft) 5.7kg SBL009-I 2.7m (9ft) 6.4kg SBL010-I 3.1m (10ft) 7.4kg SBL012-I 3.7m (12ft) 8.3kg SBL014-I 4.3m (14ft) 9.9kg SBL015-I 4.6m (15ft) 10.2kg SBL016-I 4.9m (16ft) 11.6kg SBL018-I 5.5m (18ft) 12.1kg SBL020-I 6.1m (20ft) 13.4kg

MULTI-PURPOSE LADDER

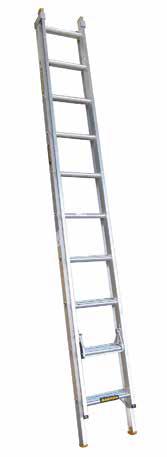

EXTENSION LADDERS STRAIGHT BUILDERS LADDERS

®

plank sold separately

MM15-I

117
